Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Standard Weight
11,950 lbs
Excluding reefer unit
ThermoTech®
Lighter, durable, and with greater thermal efficiency, the Hyundai ThermoTech can be tailored to meet your specific needs with a variety of customizable options.
Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Standard Weight
11,950 lbs
Excluding reefer unit
ThermoTech Rotator
The Best From All Angles
See Hyundai Translead products come to life using our 360º Rotator feature. Click/hover on the icons to learn what makes Hyundai Trailers a step above the competition.
ThermoTech Gallery
Hyundai Translead takes pride in quality, innovation, and manufacturing excellence that you can see on first impression. The Hyundai Treanslead ThermoTech trailer is engineered to be the most efficient refrigerated van on the market. Thermal efficiency, lighter weight, and greater durability all showcase our commitment to excellence. Scroll through photos to see features that highlight ThermoTech’s quality.
Select the tabs above to view each specification category.
Product Specifications
All ThermoTech Refrigerated Vans are efficient and durable. Built to meet your specific needs, Hyundai Translead is committed to customization and flexibility to give you the perfect fit.
| Length | Exterior: 53′ 0″ | Interior: 52′ 2″ |
|---|---|---|
| Width | Exterior: 102.36″ | Interior: 97.4″ lining to lining |
| Height | Exterior: 13′ 6″ | Interior: 105.5″ |
| Capacity/GVWR | 3,722 cu. ft. of interior volume | 68,000 lbs |
| Standard Weight | 11,950 lbs (* excluding reefer unit) | |
| AIAG Floor Rating | 18,000 lbs | |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art-manufacturing-facility, ThermoTech Vans are built to be light, efficient, and customized to your needs.
| Side Sheets | Flat 0.04″ pre-painted white aluminum side sheet. |
|---|---|
| Side Posts | Extruded aluminum “Z” side posts on 12″ centers nose through support gear and 24″ centers support gear to rear of trailer. |
| Roof | One piece, 0.03″ thick aluminum, tension leveled prior to installation. Special corrugated roof sheet design allows roof to expand and contract without foam delamination or structural weakening of roof. |
| Roof Bows | Extruded aluminum I-beam on 32″ centers pre-bonded to roof sheet. |
| Front Wall | Stainless steel front impact plate and pre-painted 0.04″ white aluminum sheets with 6″ radius. Large opening refrigeration unit bracing. |
| Rear Frame | Stainless steel rear frame including corner posts, hinge butts, door header, and rear sill. Stop/tail/turn signals are fully recessed in the rear sill. Hot-dipped galvanized high-tensile steel bolt-on under-ride protection. |
| Rear Doors | Extruded aluminum frame type swing doors with dual durometer seals and 0.04″ pre-painted white aluminum outer sheets. One easy-operating anti-rack lock rod per rear door. Lock rod handles are fitted with rubber grips for operator comfort and safety. Four heavy-duty extruded aluminum hinges per door are provided. |
| Insulation | Injection foamed urethane insulation. Sides, floor and roofing 2″ thick. Rear door 3″ thick. Front wall 4″ thick |
| Refrigeration | Heavy-duty mounting frame and bracing provided for large opening nose mounted unit |
Select the tabs above to view each specification category.
Advanced Options
Browse our advanced options for enhancing your product.
Ultimate Corrosion Package
Offering additional protection to almost every steel component that is not part of the standard hot dipped galvanized package.
Aerodynamic Side Skirts
Aerodynamic side skirt options are available to meet US EPA SmartWay and California Air Resources Board requirements.
Roll-Up Doors
Roll-up doors available from various manufacturers.

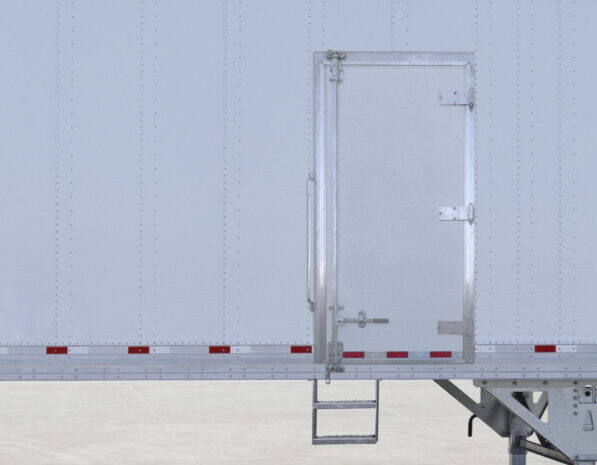

Side Doors
Steps and lifts are also available for factory installation.
Air Disc Brake
Stable braking with virtually no fading, excellent downhill performance. Increased driver comfort – braking feels more like that of a passenger car.
Tire Inflation Systems
To assist in achieving greater fuel savings, tire inflation systems can be installed at the factory.

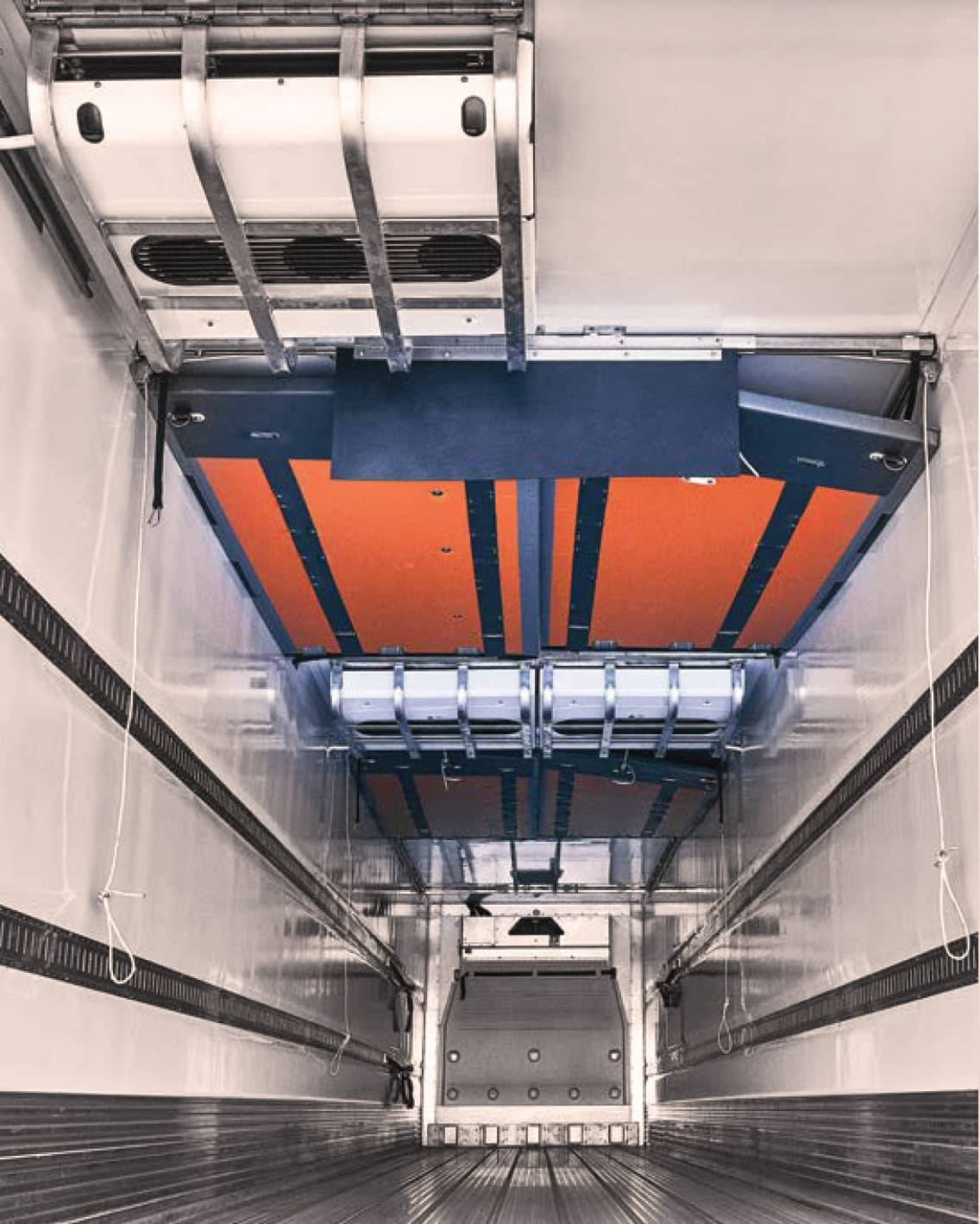

Multi-Temp Configurations
Optional load partitions enable multiple compartments to protect temperature-sensitive cargo and improve operational efficiency.
Difference Makers
Innovations that elevate ThermoTech®
Explore why and how Hyundai Translead refrigerated trailers are more durable and built to last.
Manufacturing & Materials
State-of-the-art manufacturing and ongoing investment in engineering and materials delivers stronger and lighter trailers that improve efficiency and reduce costs.
Increased Freight Capacity
Thinner walls and lower trailer weight allow increased payload, increasing revenue and reducing fuel costs and emissions.
Durability
ThermoTech trailers are designed to be lighter and more durable. ThermoTech benefits from hot-dipped galvanization, protected air and electrical lines, and unparalleled structural integrity.
Longevity
Hyundai Translead builds trailers for longer service life, reducing total cost of ownership with longevity-focused features and a protective warranty.
Hot-Dipped Galvanization
Hyundai Translead is the only manufacturer in the industry to offer an Anti-Corrosion Package, with hot-dipped galvanization as a standard feature.
Thermal Efficiency
Tighter seals around openings and throughout the van frame combine with improvements in insulation materials and application to improve energy efficiency and food preservation.
Efficiency & Savings
Increased weight savings means increased cargo capacity, increased efficiency and increased gas savings. Reduce energy usage and prolong refrigerator unit life.
