Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Tare Weight
13,510 lbs
Original®
The Hyundai Original® can be custom built to meet the specific needs of your operation. Versatile, durable and and easy to service, the Original benefits from extensive automation in its computer-controlled build, for consistent, reliable quality.
Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Tare Weight
13,510 lbs
Original Rotator
The Best From All Angles
See the Hyundai Translead Original come to life using our 360º Rotator feature.
Use the tabs to select different views of the trailer, and click on the icons to learn what makes Hyundai Trailers a step above the competition.
Original Photo Gallery
Hyundai Translead consistently delivers quality, innovation, and manufacturing excellence that you can see on first impression. The Original dry van is engineered for a long service life. Strong, versatile and customizable, it will be an ideal addition to your fleet. Scroll through our photos to see features that offers the quality and functionality you need.
Select the tabs above to view each specification category.
Product Specifications
The Original Dry Van is our standard model built to meet your unique needs. Hyundai Translead is committed to customization and flexibility to give the customer the perfect fit.
| Length | Exterior: 53′ 0″ | Interior: 52′ 6″ |
|---|---|---|
| Width | Exterior: 102.36″ | Interior: 98.5″ lining to lining |
| Height | Exterior: 13′ 6” | Interior: 110″ |
| Capacity | 3,950 cu. ft. of interior volume | 68,000 GVWR |
| Standard Weight | 13,510 lbs | |
| AIAG Floor Rating | 18,000 lbs | |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art manufacturing facility, the Original Dry Van is built to be strong and efficient, and offers a variety of features.
| Side Sheets | Side sheets 0.05″ thick pre-painted white aluminum. |
|---|---|

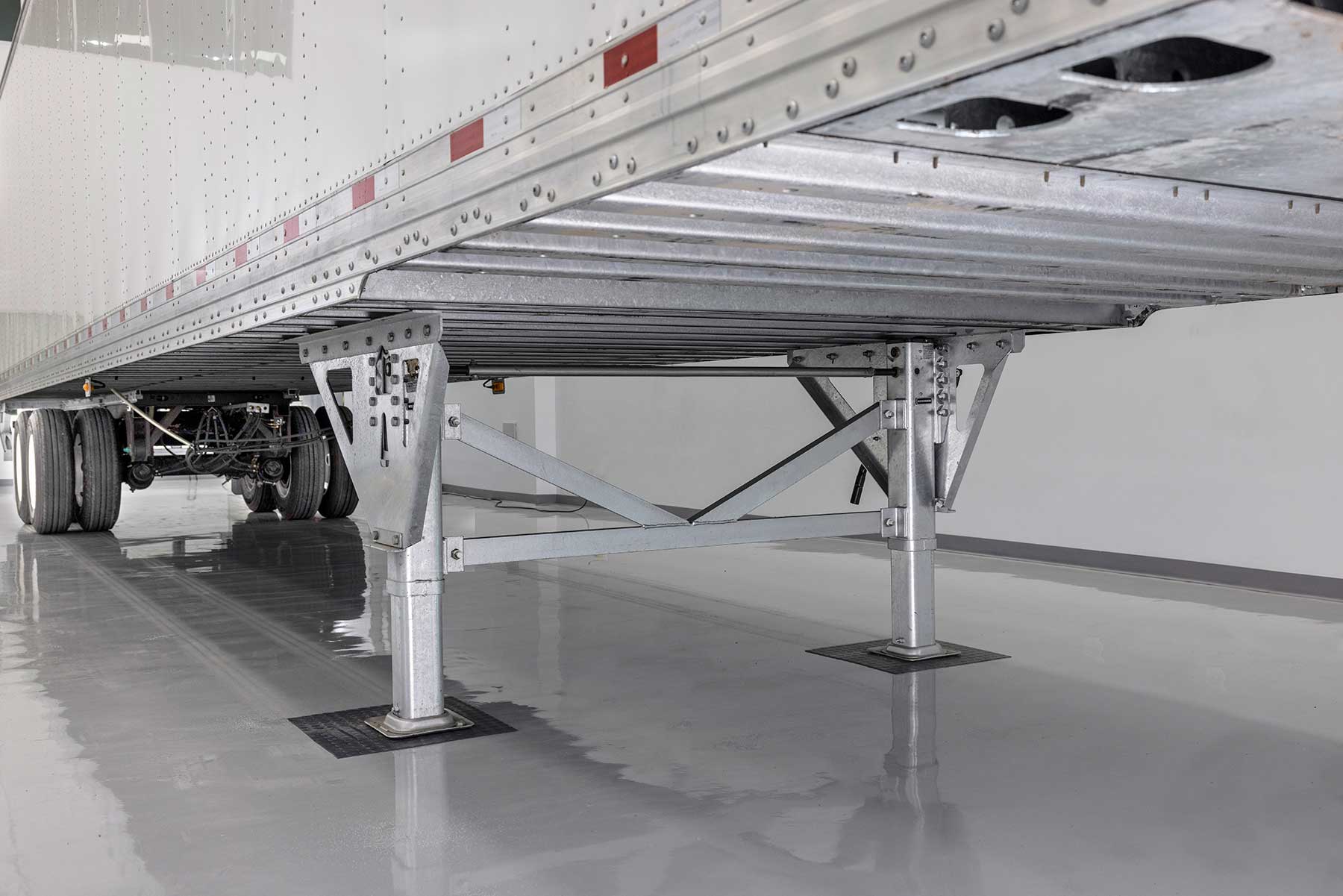

| Side Posts | Galvanized steel posts on 24″ centers, 1.13″ deep x 5″ wide, with posts on 12″ centers over coupler and landing gear area. |

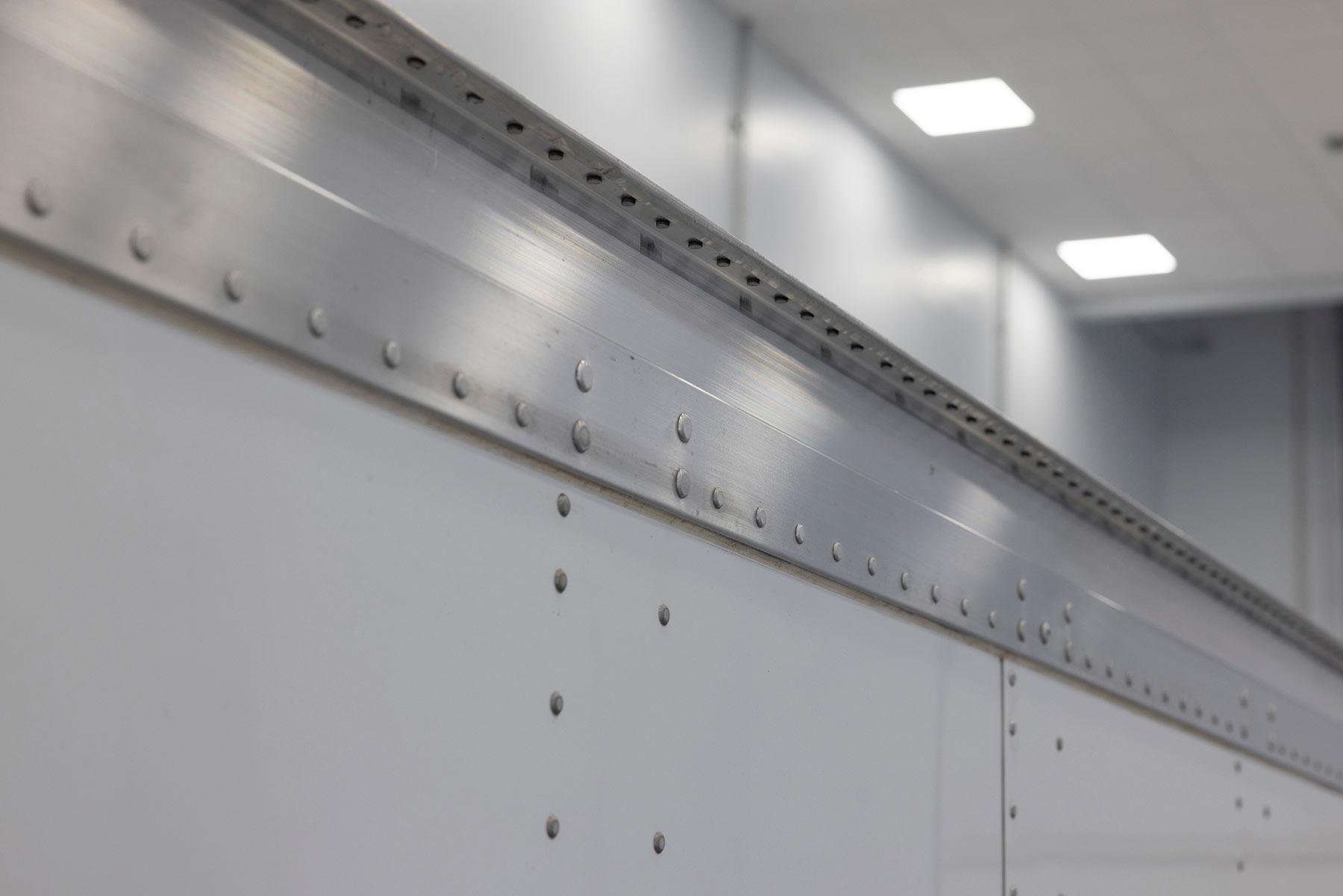

| Roof | One piece, 0.040″ thick, full width aluminum sheet, tension leveled prior to installation. |

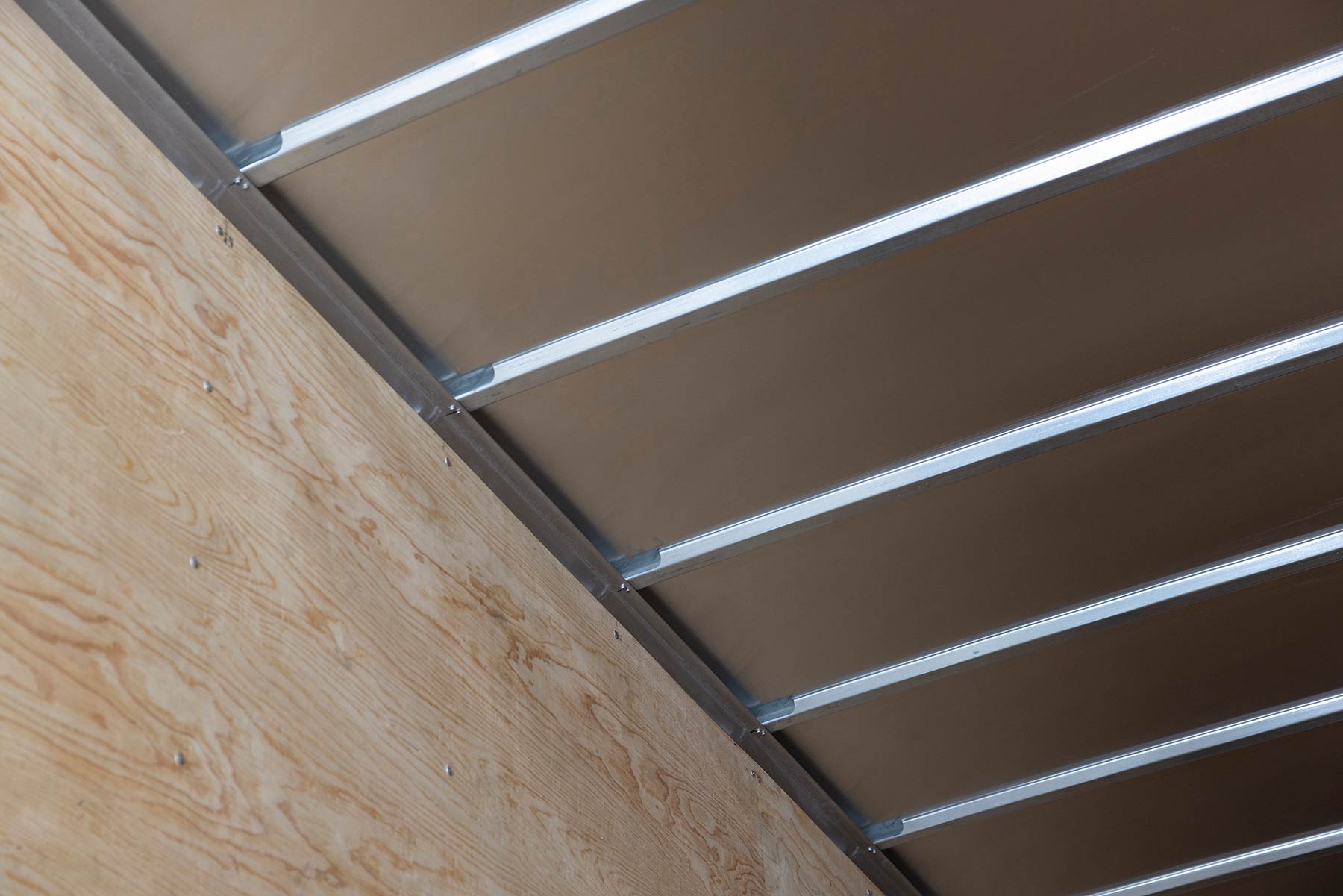

| Roof Bows | Galvanized steel anti-snag hat section on 24″ centers. Pre-bonded to roof sheet. Roof bows installed using four solid rivets, two per end. |

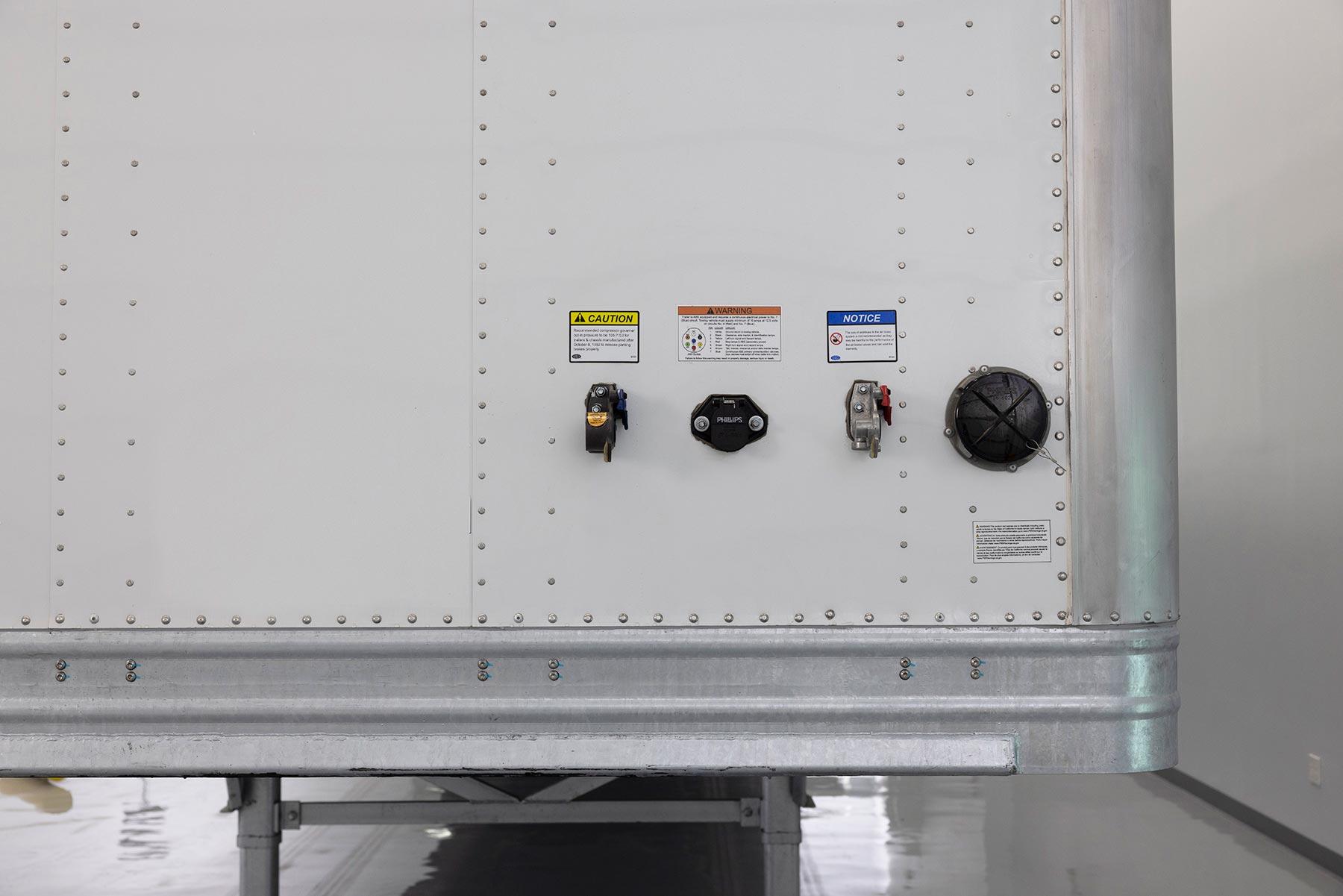

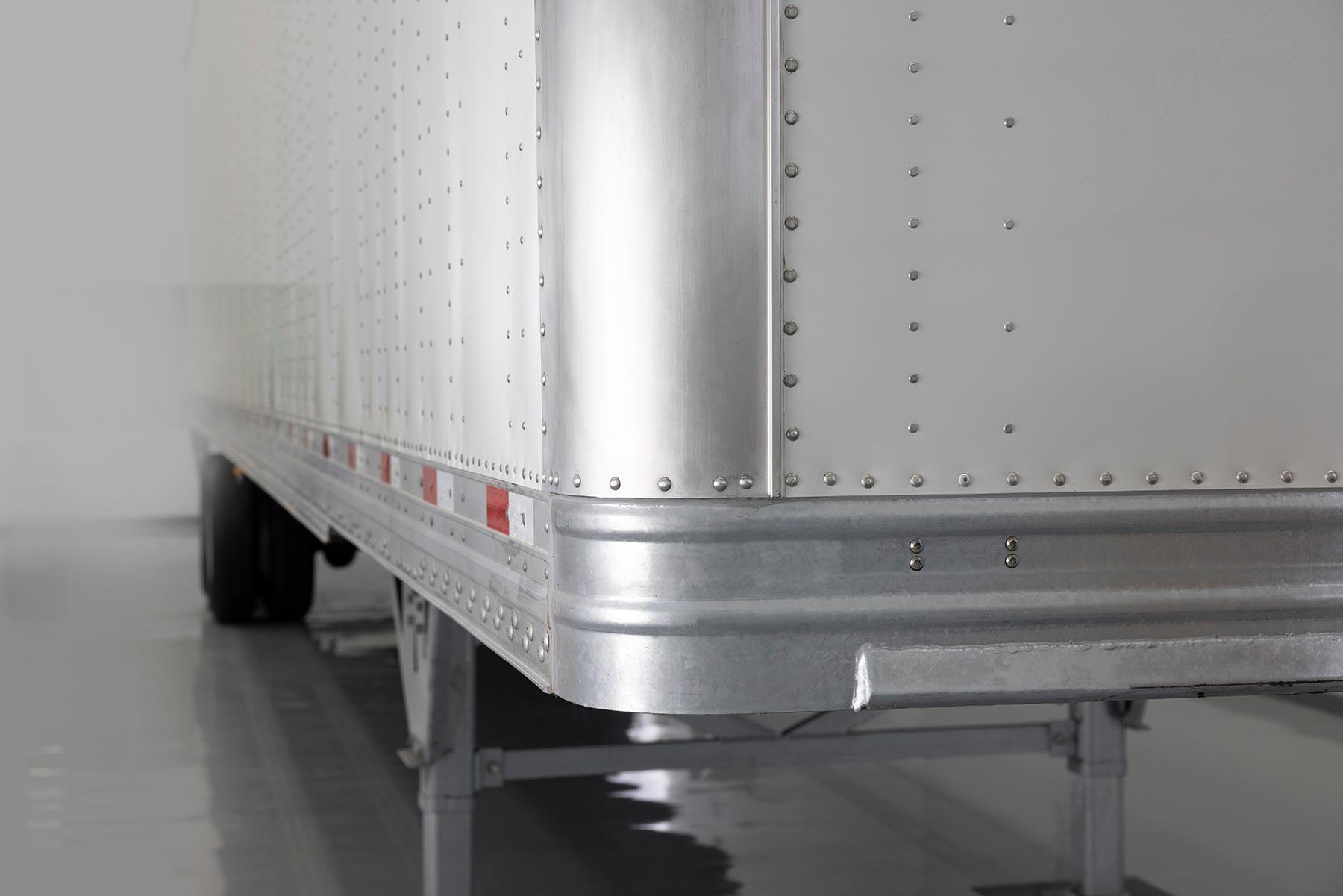

| Front Wall | Four high-tensile, hat shaped, posts covered with 0.05″ aluminum front sheets. |

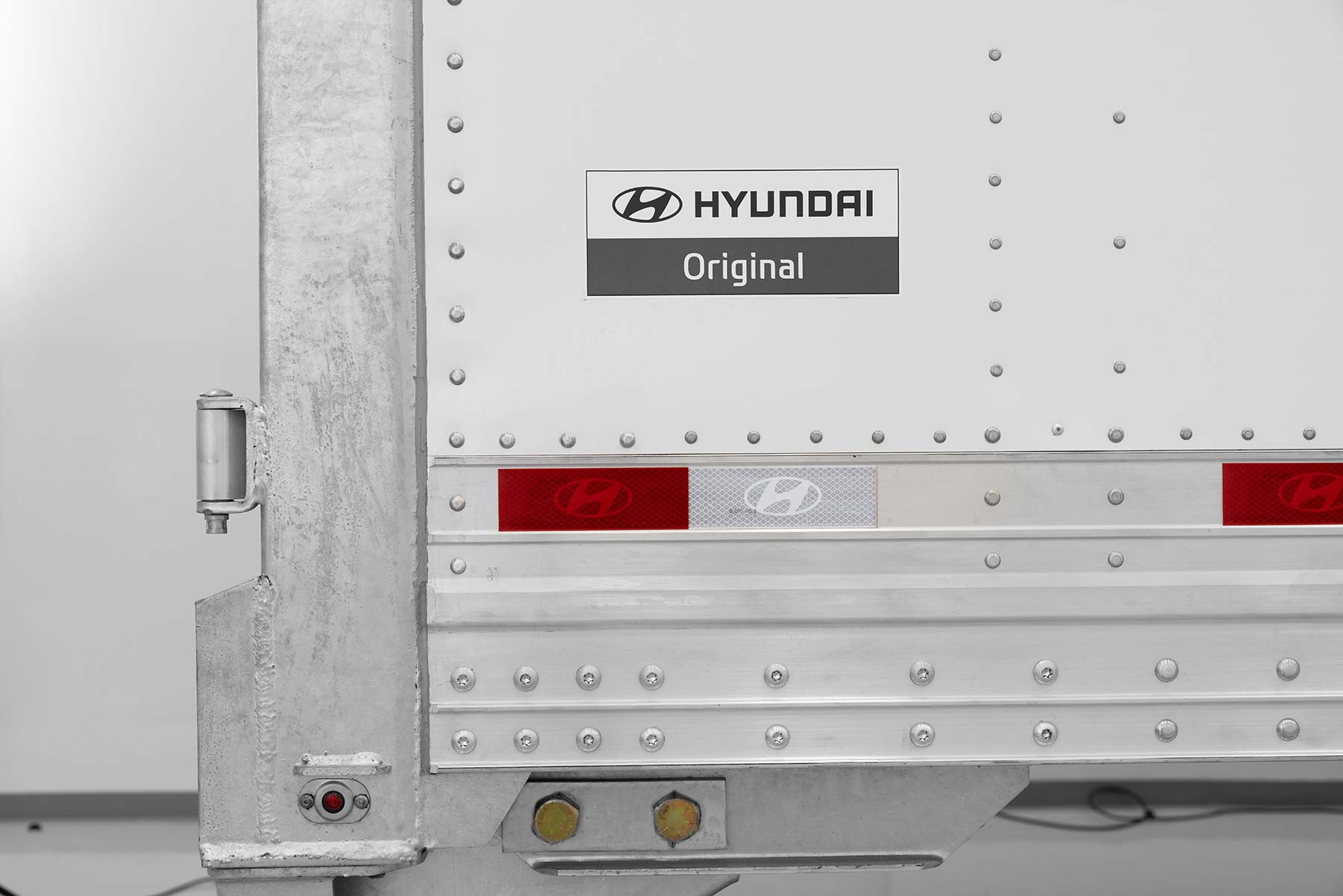

| Rear Frame | Hot-dipped galvanized, high-tensile steel construction 0.19″ thick with low profile header, tube shaped posts. Forged steel angle irons in top corners for added rack resistance. Lights recessed in rear sill with heavy-duty protection bars and welded reinforcing bar between tail lamps. |

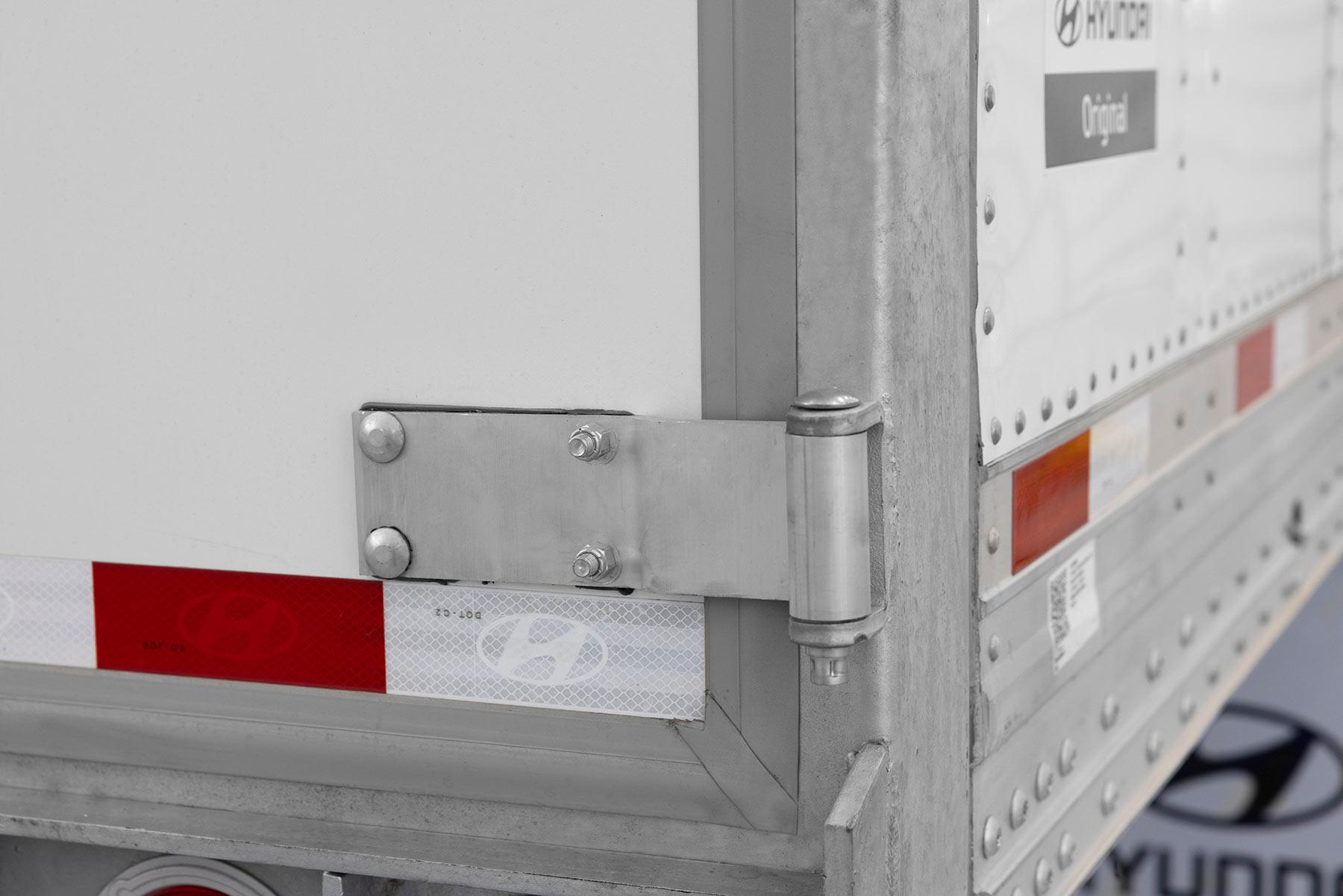

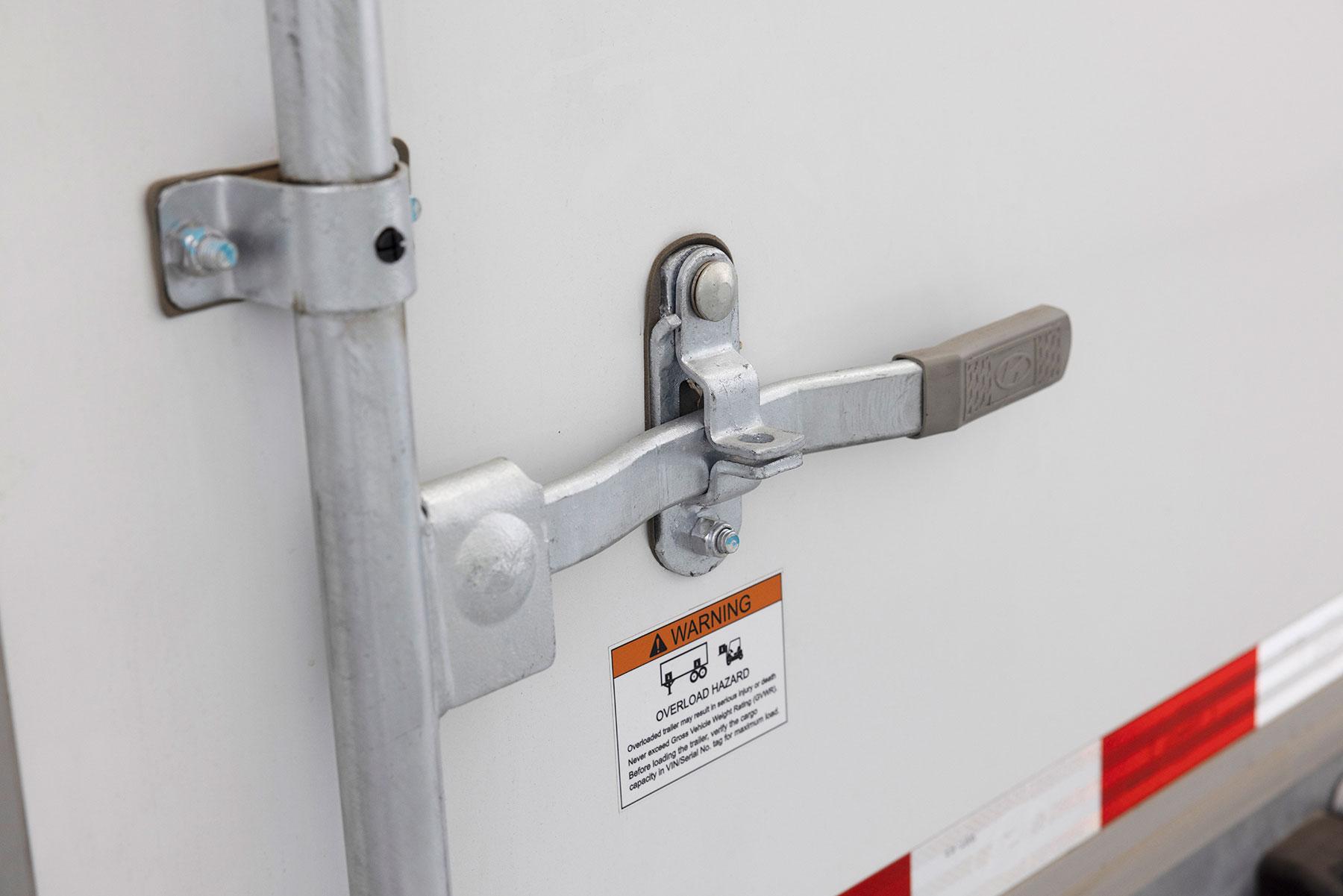

| Rear Doors | Composite swing door, 0.5″ composite panel. Dual durometer seals bonded to door. Four hinges and one anti-rack locking bar with nylon bushings per door. Lock handles fitted with rubber grips for operator comfort and security. |

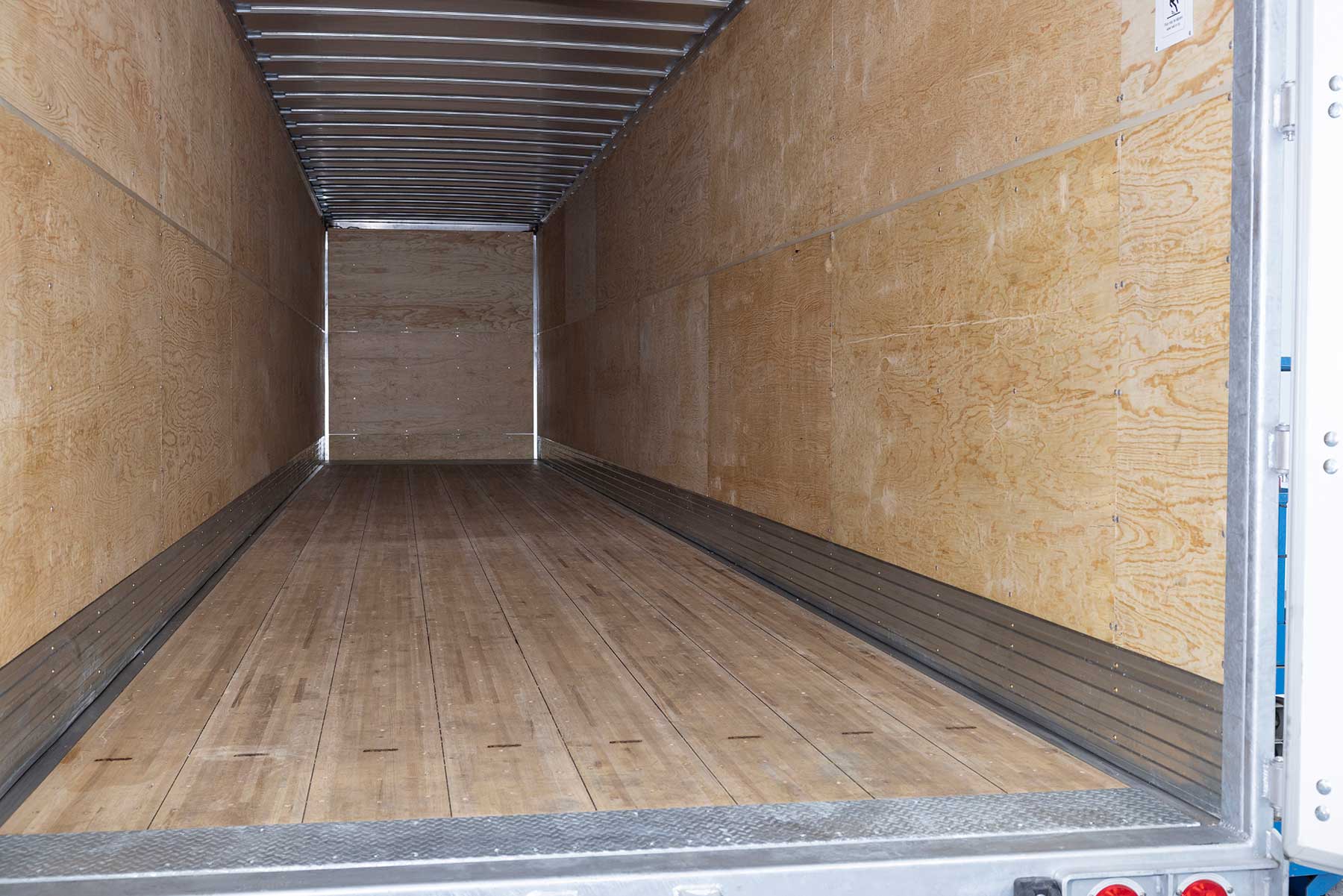

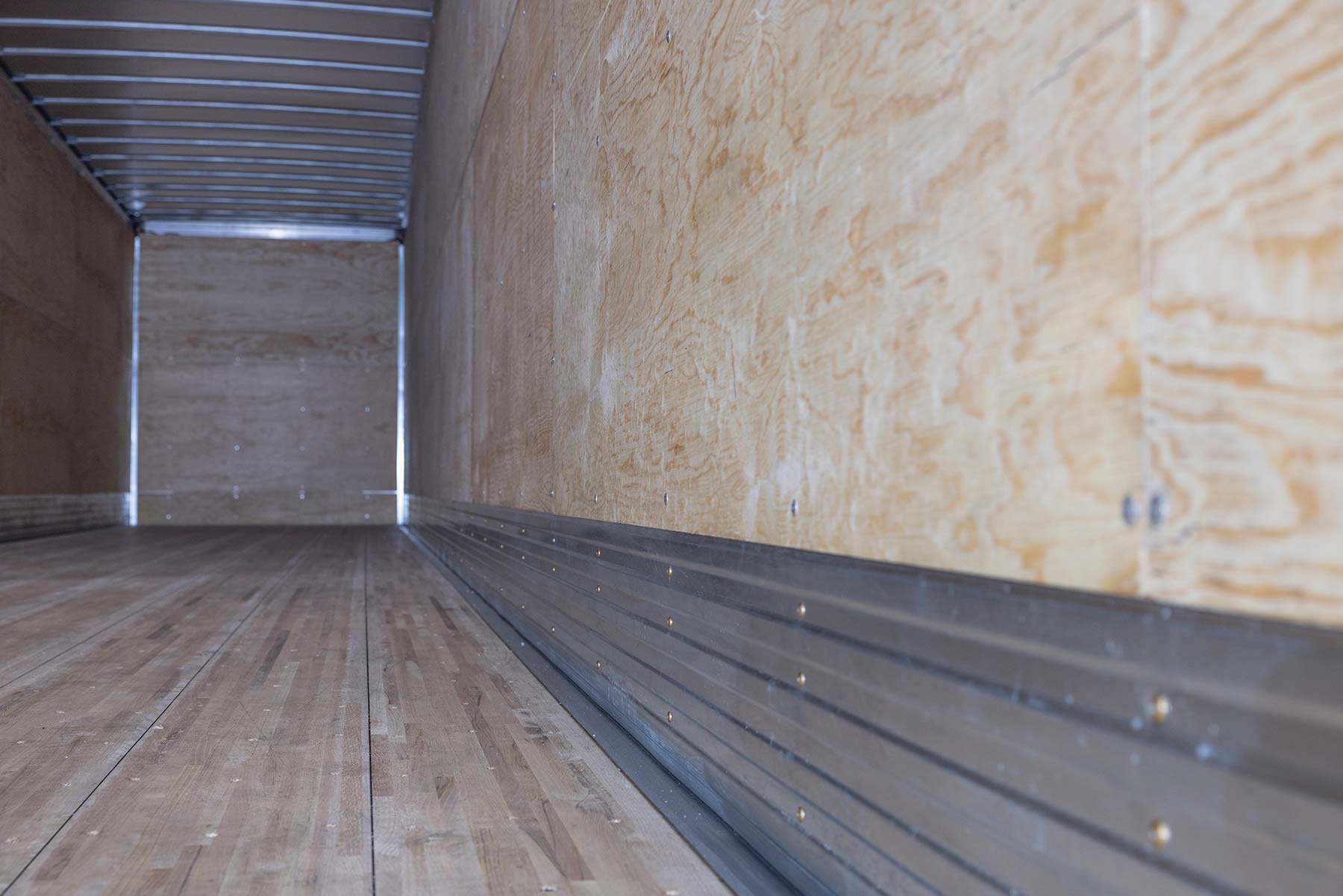

| Interior Lining | Exterior grade plywood, 0.25″ thick, installed horizontally over side posts. Exterior grade 0.5″ plywood installed lower half of front wall and 0.25″ over top height of front wall. |
Select the tabs above to view each specification category.
Advanced Options
Browse our advanced options for enhancing your product.
Ultimate Corrosion Package
Offering additional protection to almost every steel components that are not part of the standard hot dipped galvanized package.
Scuff Options
Additional scuff options available in wood, plastic or steel to fit your operations.
Aerodynamic Side Skirt Kit
Hyundai Translead offers the HT EcoFairing aerodynamic side skirt which meets US EPA SmartWay and California Air Resource Board requirements.
Liftgate Factory Install
Lift gates can be factory installed so that your trailer is ready for use when you need it.
Roll Up Doors
Roll Up Doors available from various manufacturers.
Tire Inflation Systems
To assist in achieving greater fuel savings, tire inflation systems can be installed at the factory.
Dome Lamps
For increased interior visibility dome lamps are available from various manufacturers.
Wide Base Tires
Wide based tires from various manufacturers are available to meet both EPA SmartWay and California Air Resources Board requirements.
Rear Frame Options
Hyundai Translead can configure the rear of your trailer to meet your specific operational needs. From Pintle hook and side steps to additional tail lights we can build what you need.
Tri-Axle Configuration
Tri-Axle configurations available for those operations running heavy freight loads.
Air Disc Brake
Stable braking with virtually no fading, excellent downhill performance. Increased driver comfort – braking feels more like that of a passenger car.
Additional Channel
Additional channel with “A” slot holes are available for more flexible cargo securement options.
Roller Floor & Lashing Points
Roller floor and lashing point to help with loading, unloading, and for flexible load security.
Diverse Corner Protectors & Rub Rails
Corner radius protectors and side rub rail productions to provide extra protection against operation damage.
Difference Makers
Innovative features that elevate the Original® Dry Van
Explore why and how Hyundai Translead trailers are more durable and made to meet your needs.
Manufacturing & Materials
State-of-the-art manufacturing and ongoing investment in engineering and materials delivers stronger and lighter dry vans that improve efficiency and reduce costs.
Maximum Freight Capacity
Every Hyundai Translead dry van is engineered to maximize and handle larger payloads, increase revenue, and reduce costs.
Durability
Structure and surfaces are hardened and protected against harsh elements and damage, including docks and interior wear and tear from loading, unloading, and hauling freight.
Longevity
Hyundai Translead builds dry van trailers for longer service life, reducing total cost of ownership with longevity-focused features and a protective warranty.
Hot-Dipped Galvanization
Hyundai Translead is the only manufacturer in the industry to offer an Anti-Corrosion Package, with hot-dipped galvanization as a standard feature.
Computer-Automated
Computer automated machine riveted sides and roof provide consistent, reliable quality.
Strong and Serviceable
With the Corrosion Resistance Package, including hot-dipped galvanized steel rear frame and rear underride guard for extended service life, the Original is strong and serviceable.
