Extendable Chassis

Hyundai Translead extendable chassis are designed with flexibility in mind. We offer a variety of extendable chassis configurations to fit different loads and containers, accommodating the specific needs of your operations. Hyundai Translead extendable chassis are all built with heavy-duty construction delivering strength and durability that lasts. Browse our extendable chassis solutions to find the configuration best suited for your business.

Extendable Chassis

Hyundai Translead extendable chassis are designed with flexibility in mind. We offer a variety of extendable chassis configurations to fit different loads and containers, accommodating the specific needs of your operations. Hyundai Translead extendable chassis are all built with heavy-duty construction delivering strength and durability that lasts. Browse our extendable chassis solutions to find the configuration best suited for your business.

Extendable Chassis Models



Product Specifications

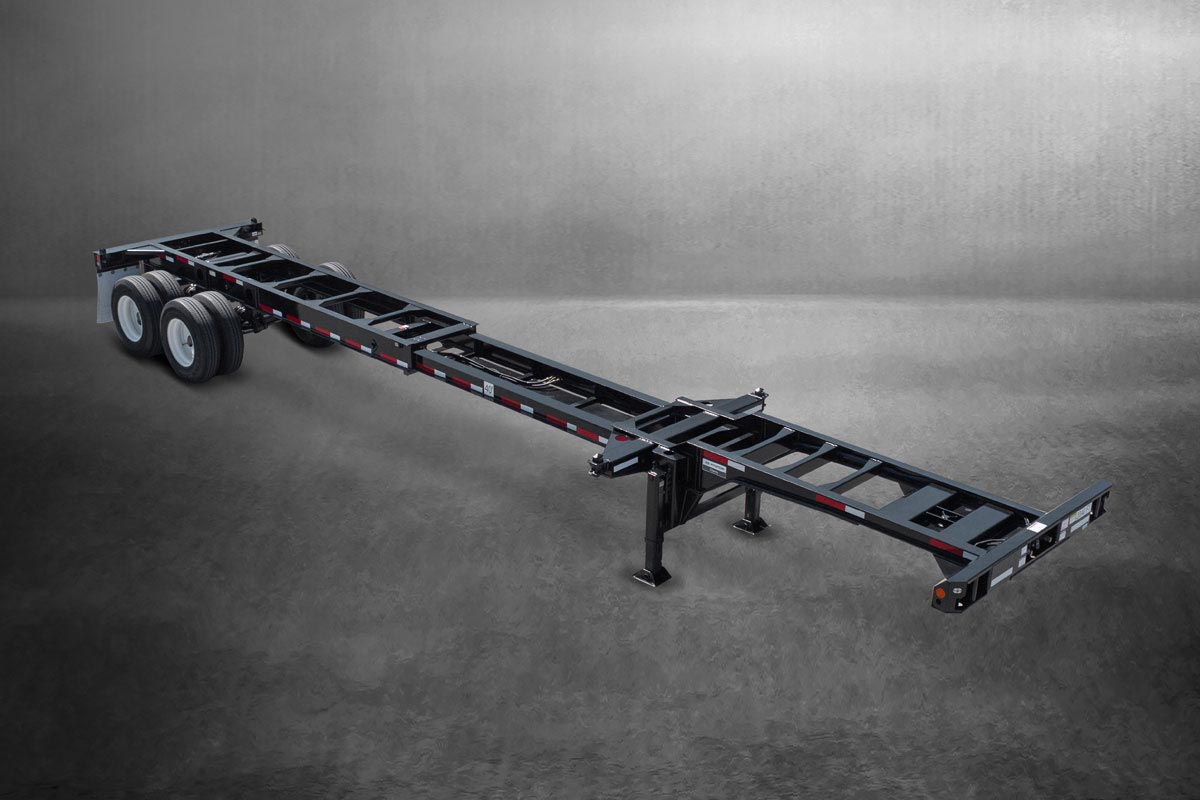

Strong and efficient, this chassis fits a 40′ ISO container or 20′ container. The chassis features 22″ radial tires and a locking pin release mechanism fully contained within the main beams for added protection against shearing.

Length Closed: 31′ 1-1/8″ Extended: 40′ 8-3/8″
Width 96″
Height 58′ 5/16″
Capacity 20′: 52,910 lbs 40′: 67,200 lbs
Tare Weight 7,600 lbs
GVWR 20′: 60,510 lbs 40′: 74,800 lbs



Body Construction

Built in our state-of-the-art manufacturing facility the 20′/40′ Tandem 6-Pin is made stronger and more efficient to help reduce costs and meet your specific intermodal needs.

Main Beam High tensile steel, hot rolled 12″ x 19 lbs/ft H-beam.
Gooseneck Fabricated “I” Beam w/ 5/8” top & 1/2” bottom flanges and 3/8” web, all GR50.
Crossmember Fabricated channel crossmember w/ gussets integrated, every other crossmember.
Landing gear 55,000 lbs capacity with heavy-duty low profile sand shoe (solid pin).

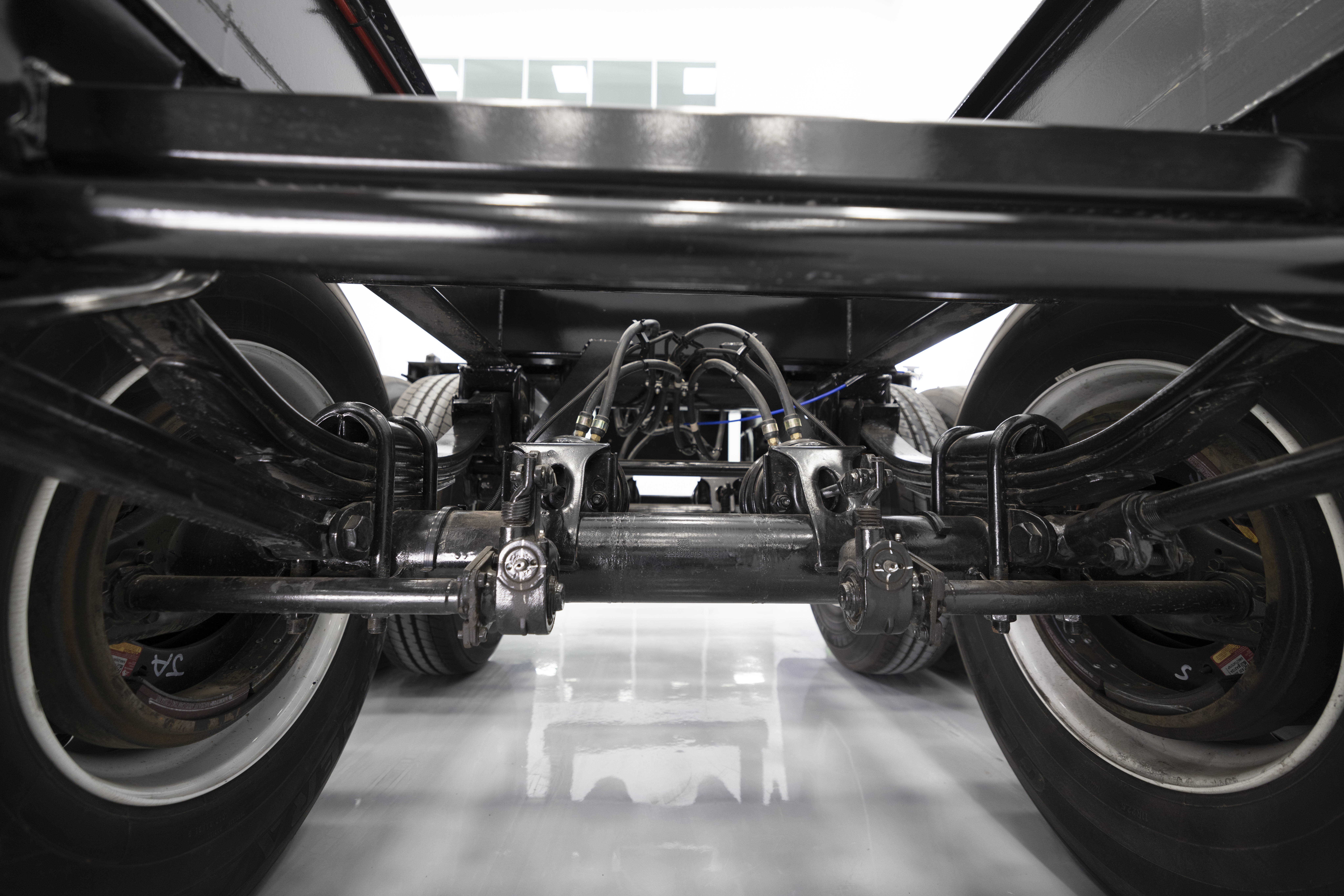

Suspension Hutchens overslung spring hangers with three leaf springs.
Axles 5” round type, 22,500 lbs rating, 71-1/2” track with 16-1/2” x 7” non-asbestos brake lining.

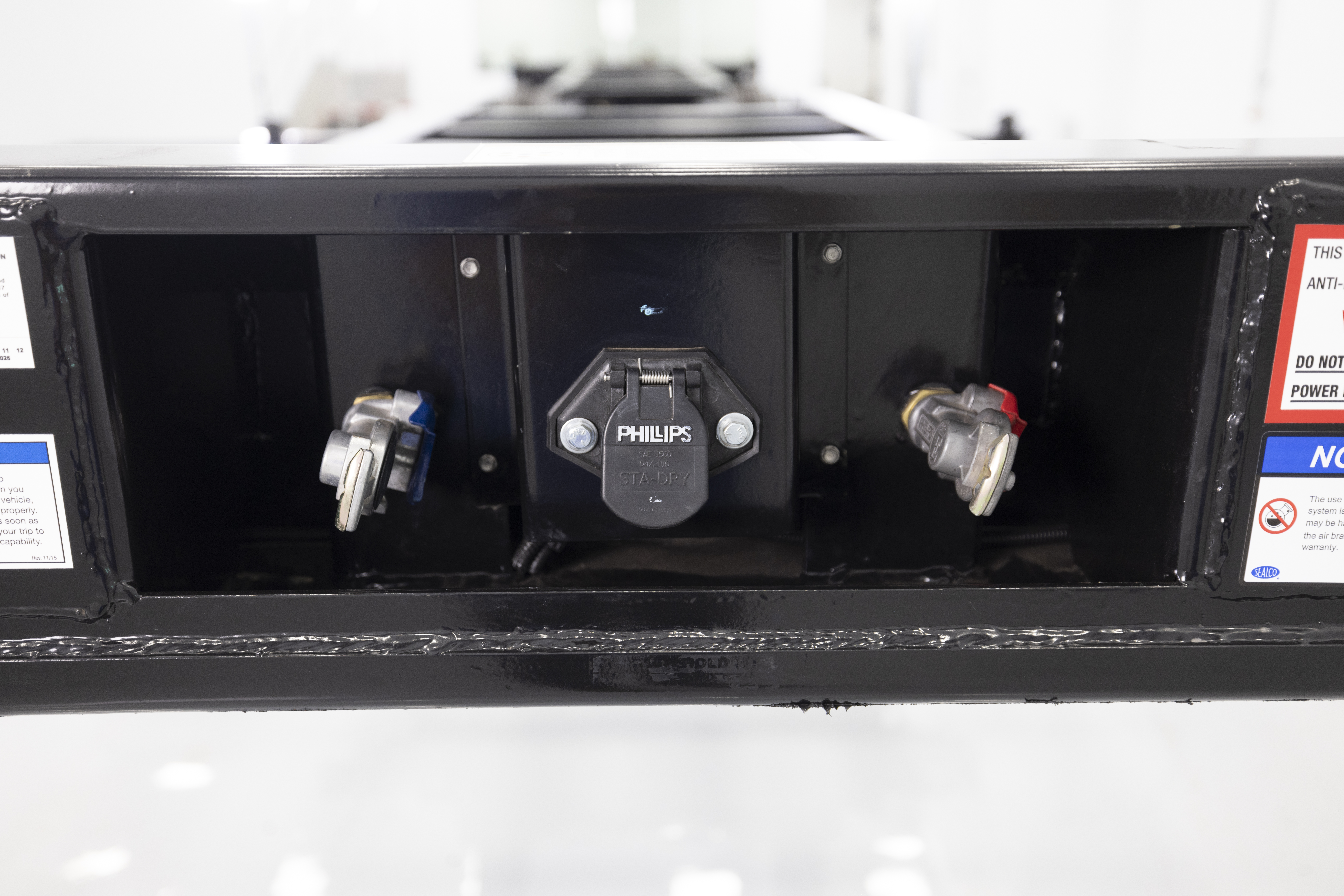

Lights and Wiring 12 volt sealed system with molded connectors to fit sealed LED lamps.




Product Specifications

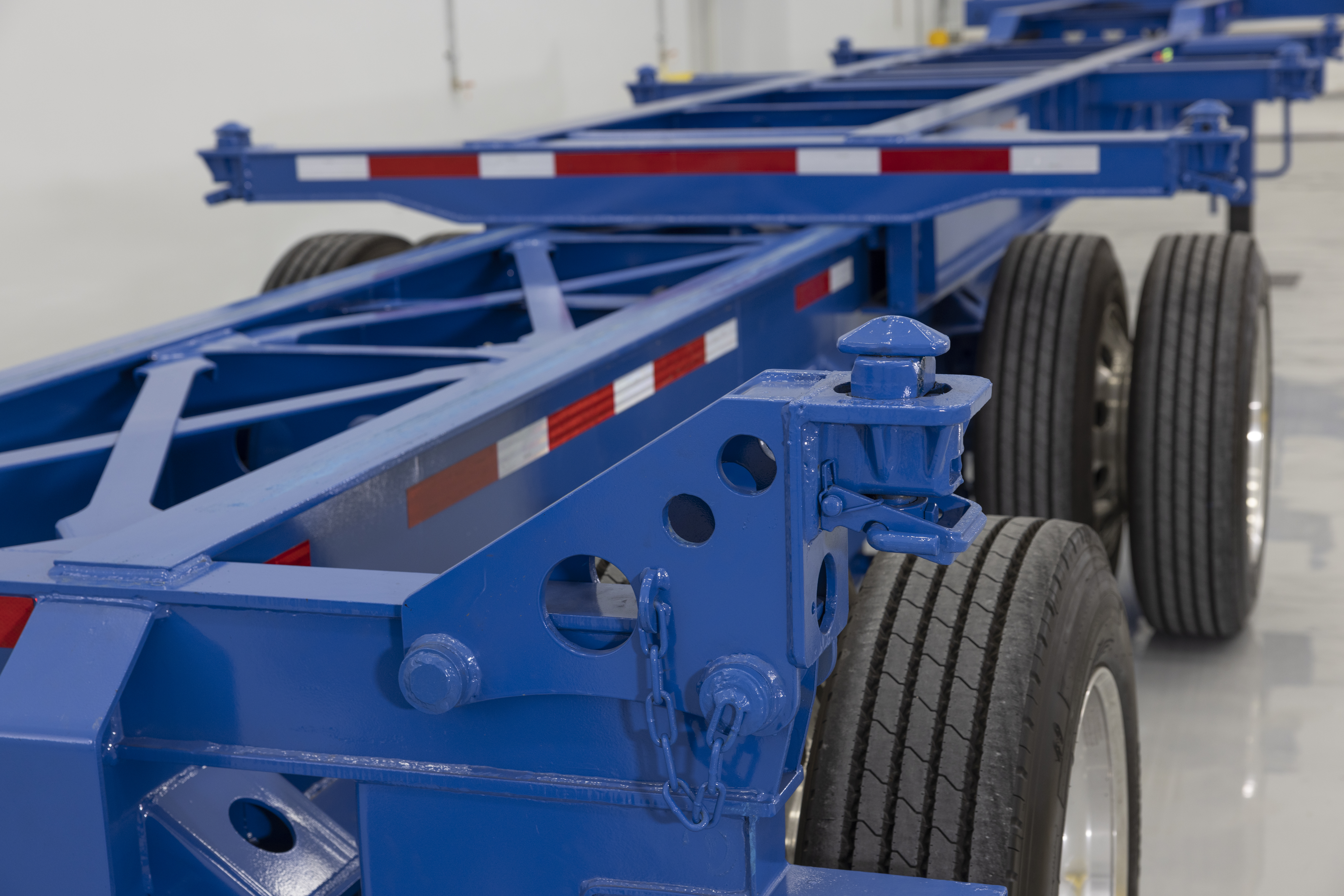

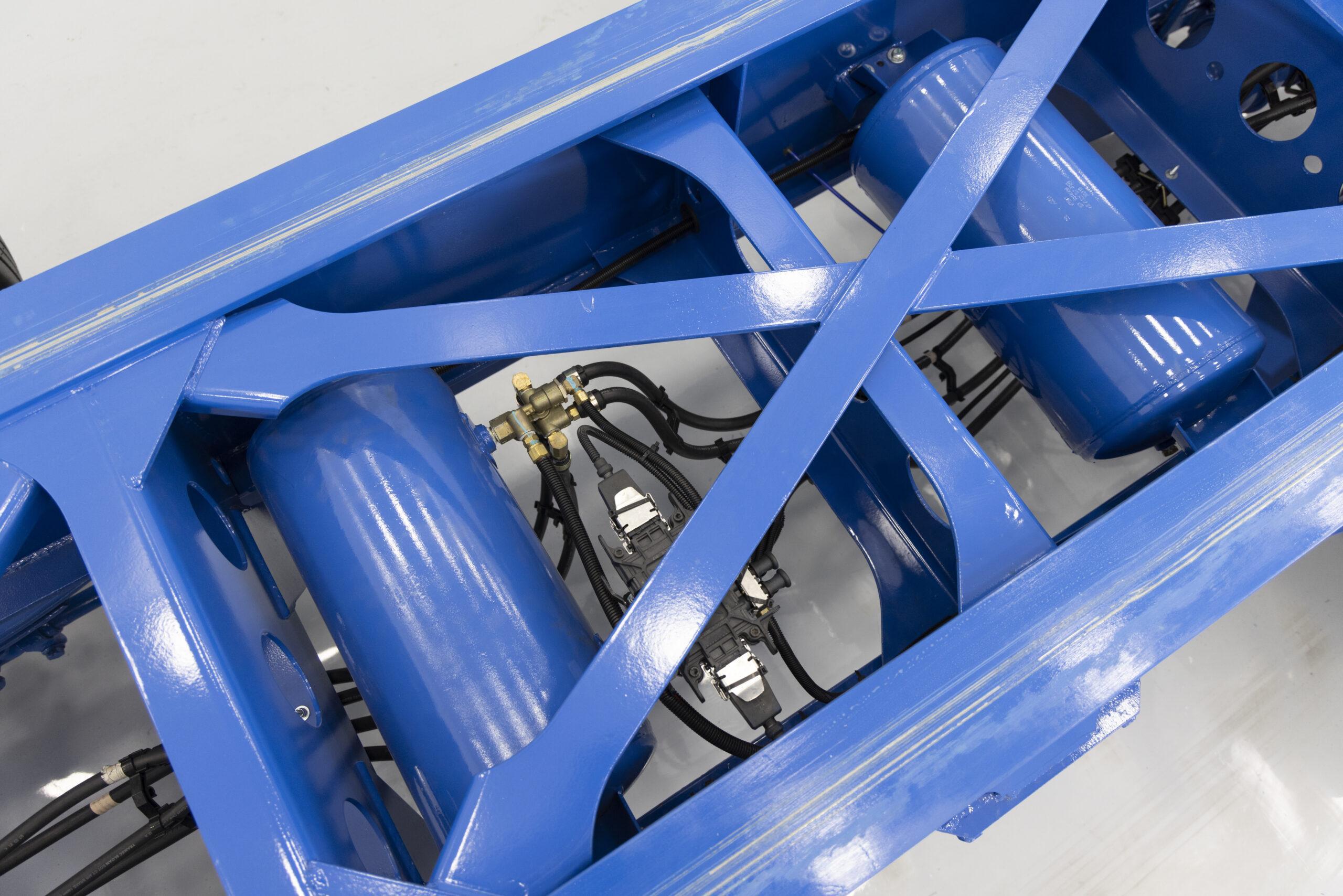

Offering the ability to carry multiple types of containers, this chassis works in multiple configurations. It carries either one 40′ container, one 20′ container, or two empty 20′ containers. 109″ spread axle provides increased capacity over standard axle spacing.

Length Closed: 32’ 1-1/4” Extended: 40’ 6”
Width 96″
Height 59″
Capacity 20′: 52,910 lbs 40′: 65,600 lbs
Tare Weight 9,400 lbs
GVWR 20′: 62,310 lbs 40′: 75,000 lbs

Body Construction

State-of-the-art manufacturing and our investment in engineering and materials deliver stronger and more efficient products, while also reducing costs.

Main Beam Fabricated “H” beam w/ 1/2” top & bottom flanges grade 130 and 3/16” web GR80.
Gooseneck Fabricated “H” beam w/ 1/2” top & bottom flanges grade 130 and 3/8” web GR80.
Crossmember Fabricated channel with gussets integrated.
Landing gear 62,500 lbs lift capacity with low profile sand shoe.
Suspension Hutchens underslung spring hangers w/ two leaf springs.
Axles 5” round type, 22,500 lbs rating, 71-1/2” track with 16-1/2” x 7” brake lining.
Lights and Wiring 12 volt sealed system with molded connectors to fit sealed LED lamps.



Product Specifications

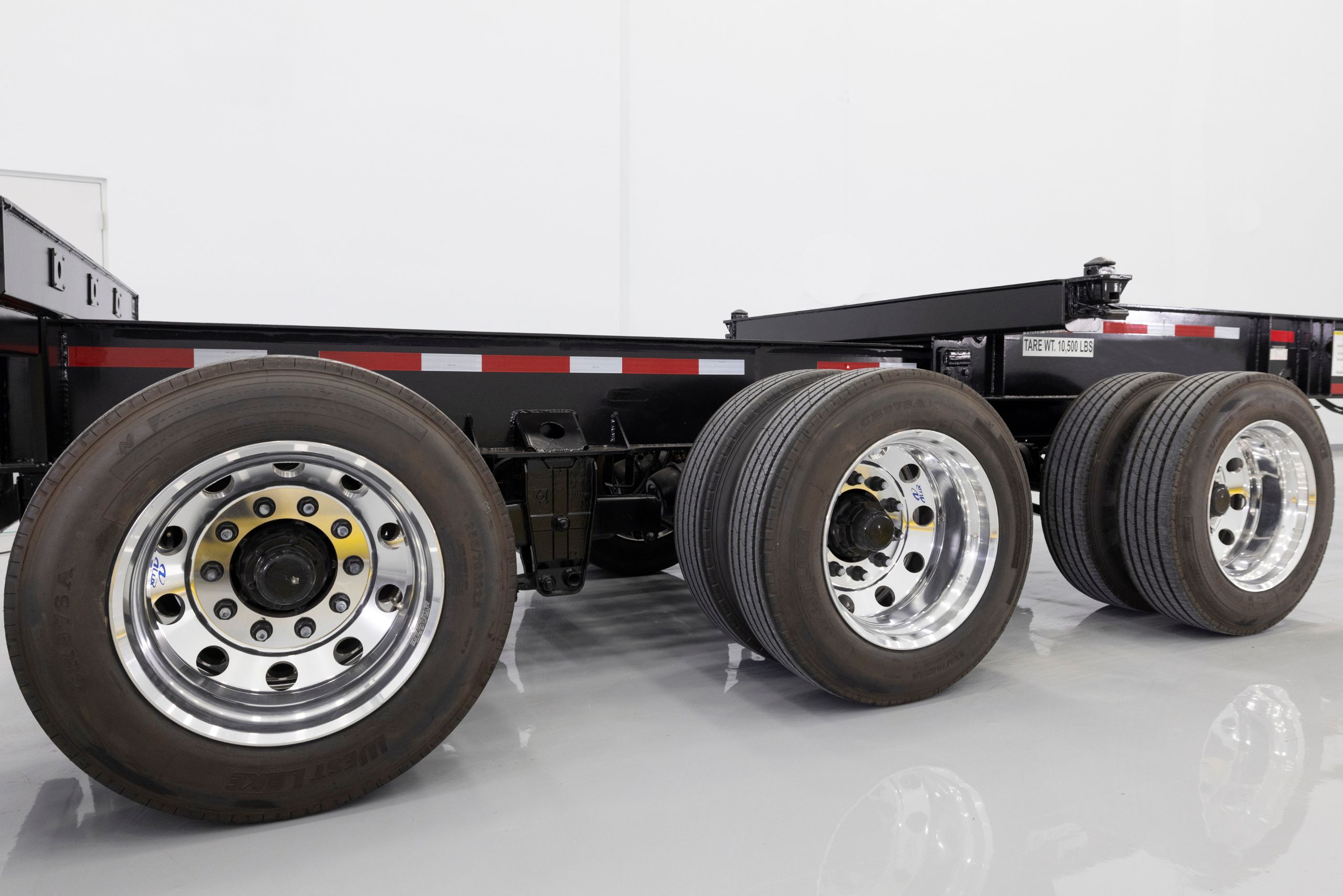

The Tri-Axle 12-Pin is a stronger and more stable option. North America’s leading chassis manufacturer offers strength that lasts, variety for your specific needs, and versatile models that increase efficiency.

Length Closed: 32′ 1-1/4″ Extended: 40′ 6-3/16″
Width 96″
Height 59″
Capacity 20′: 66,400 lbs 40′: 74,400 lbs
Tare Weight 10,600 lbs
GVWR 20′: 77,000 lbs 40′: 85,000 l lbs

Body Construction

State-of-the-art manufacturing and our investment in engineering and materials deliver stronger and more efficient products, while also reducing costs.

Main Beam Fabricated “H” beam w/ 1/2” top & bottom flanges grade 130 and 3/16” web GR80.
Gooseneck Fabricated “H” beam w/ 1/2” top & bottom flanges grade 130 and 3/8” web GR80.
Crossmember Fabricated channel with gussets integrated.
Landing gear 62,500 lbs lift capacity with low profile sand shoe.
Suspension Hutchens underslung spring hangers w/ two leaf springs.
Axles 5” round type, 22,500 lbs rating, 71-1/2” track with 16-1/2” x 7” brake lining.
Lights and Wiring 12 volt sealed system with molded connectors to fit sealed LED lamps.


Product Specifications

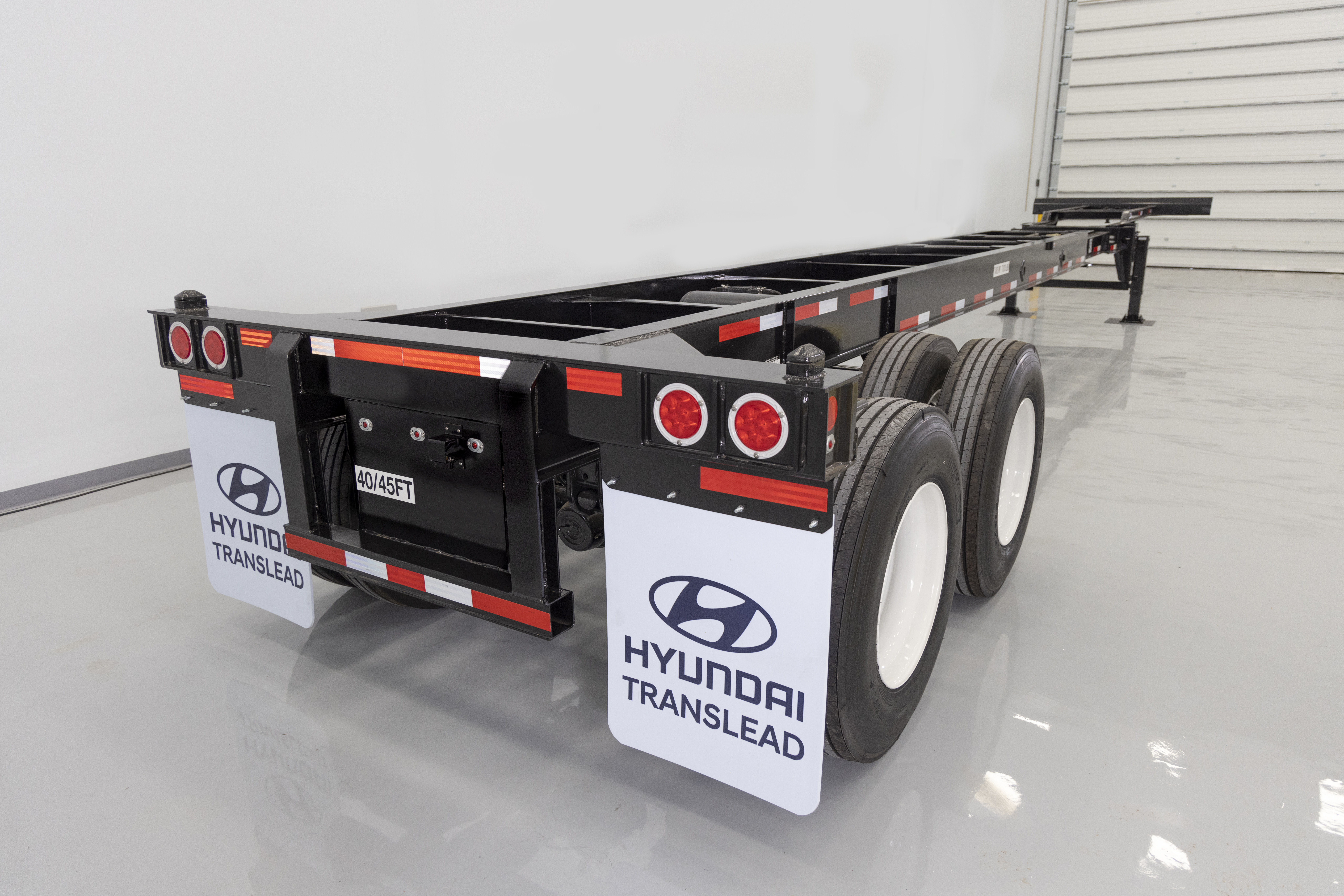

The 40′/45′ Extendable Chassis is designed to be the perfect fit for you. North America’s leading chassis manufacturer offers strength that lasts, variety for your specific needs, and versatile models that increase efficiency.

Length Closed: 40’ 8” Extended: 45’ 8-1/4”
Width 96″
Height 58-3/8″
Capacity 67,200 lbs
Tare Weight 7,000 lbs

Body Construction

Built in our state-of-the-art manufacturing facility the 40′/45′ Extendable Chassis is made stronger and more efficient to help reduce costs and meet your specific intermodal needs.

Main Beam High tensile steel, hot rolled 12″ x 16 lbs/ft H-beam.
Gooseneck Fabricated “I” beam w/ 1/2” top & bottom flanges and 1/4” web, all GR50.
Crossmember Fabricated channel with gussets integrated, every other crossmembers.
Landing Gear 50,000 lbs capacity with heavy-duty low profile sand shoe.
Suspension Hutchens overslung spring hangers with three leaf springs.
Axles 5″ round, 22,500 lbs rating, 71-1/2″ track, 16-1/2″ x 7″ with non-asbestos brake lining.
Lights and Wiring 12 volt sealed system with molded connectors to fit sealed LED lamps.



Product Specifications

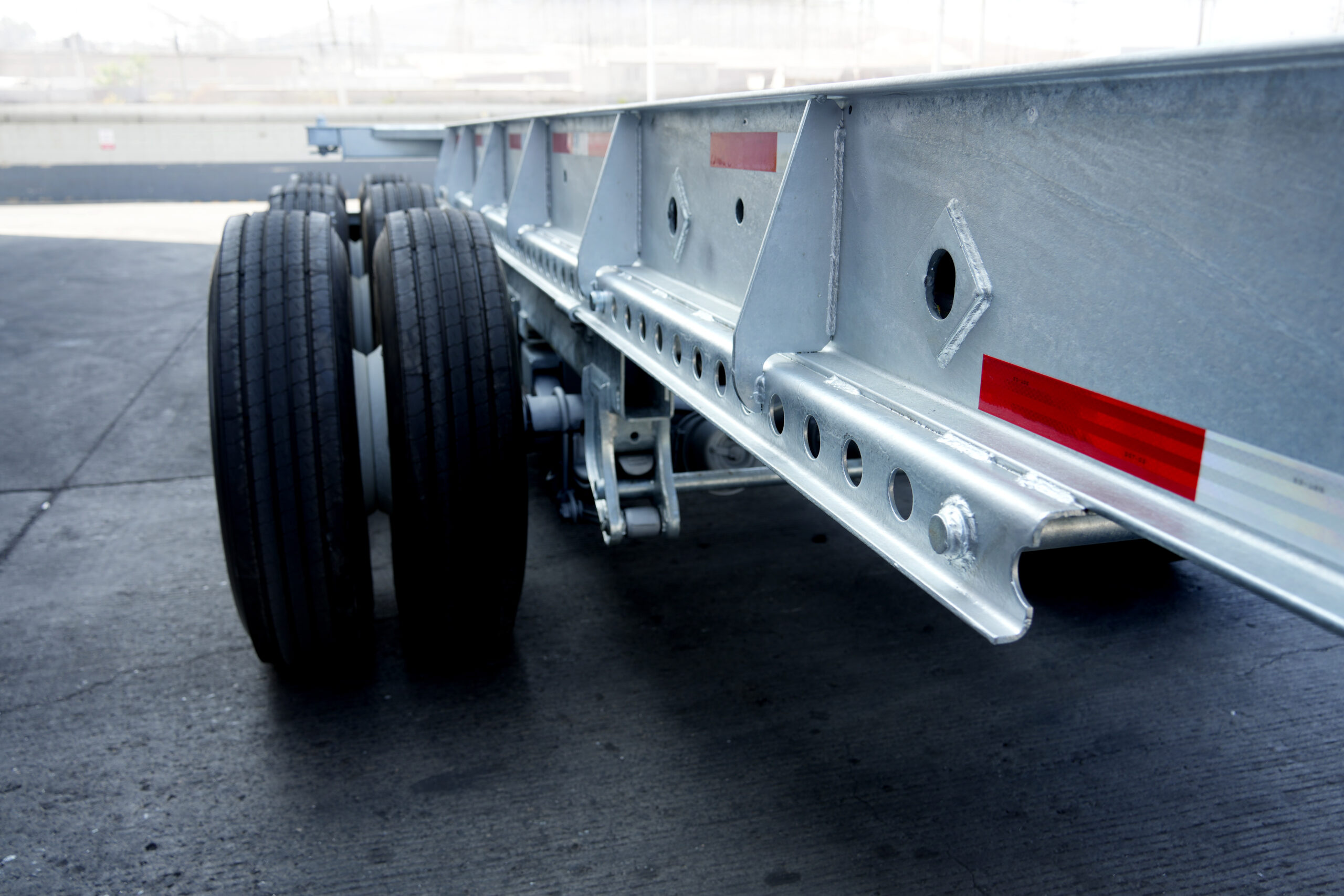

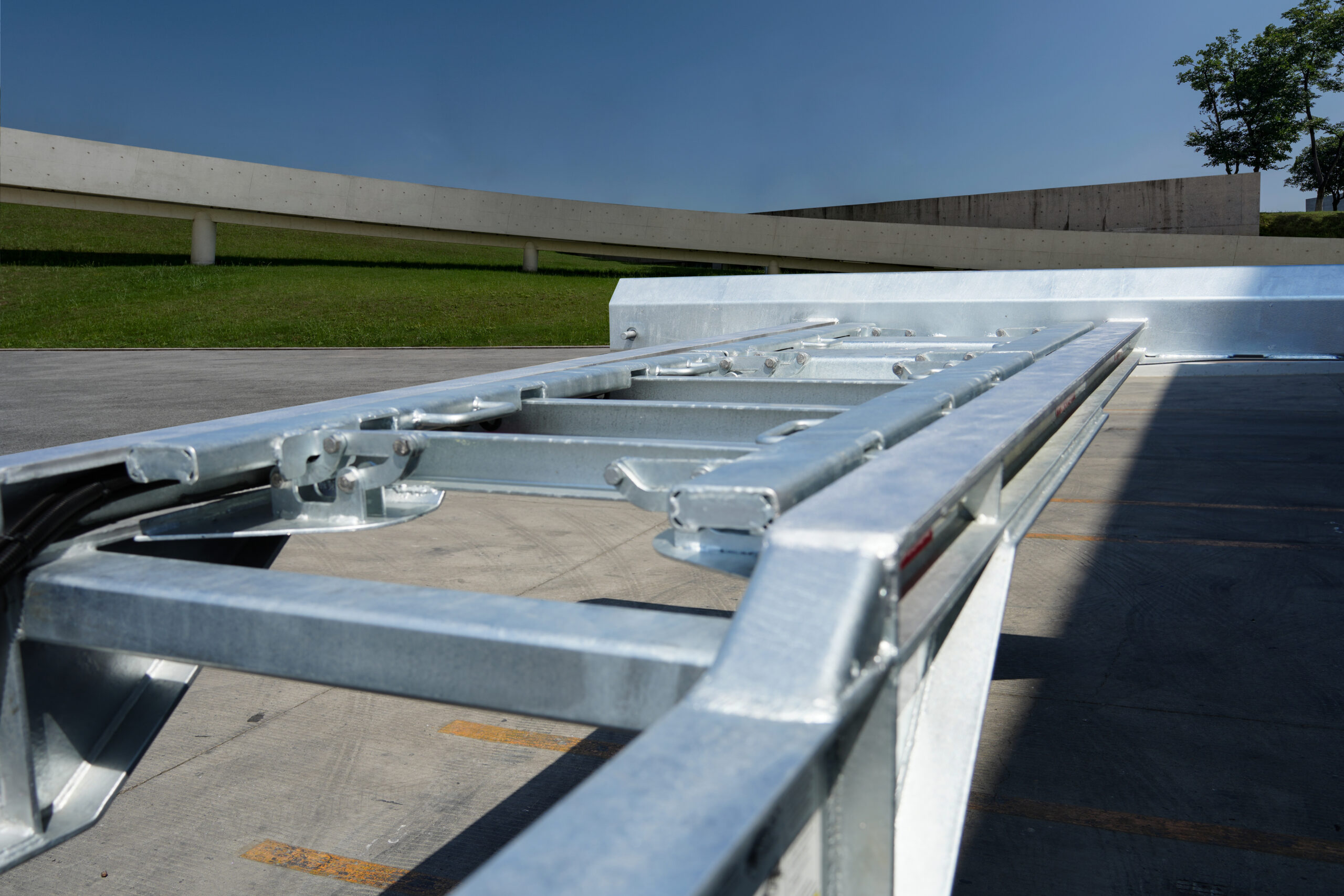

Hyundai Translead is now offering the 40-53’ Ext HDG Chassis with a hot-dipped galvanization coating, meeting the high demand for corrosion-resistant equipment where snow, salt, and harsh weather conditions are prevalent.

Length Closed: 40’-8 1/4” Extended: 53’ 8 1/4”
Width 102″
Capacity 80,000 lbs
GVWR 91,500 lbs
Tare Weight 11,500 lbs

Body Construction

The HDG Chassis ensures a longer chassis life and enhanced durability, no matter where your journey takes you.

Main Beam Hi-tensile steel, hot rolled 12” x 19 lbs/ft H-beam.
Extension Beam Hi-tensile steel, hot rolled 8” x 18 lbs/ft H-beam.
Lock Mechanism Pneumatic pin mechanism activated through a universal gladhand.
Gooseneck 5/8” thick x 4” wide top and bottom flanges and 5/16” thick web.
Gooseneck Misc Patented Hyundai Translead designed variable heigh swivel type gooseneck adapter.
Crossmembers Fabricated channel crossmember with gussets integrated, every other crossmember.
Upper Coupler All hi-tensile steel construction with A.A.R. Certified cruciform style kingpin. All interior walls of closed sections coated for superior corrosion protection.
Front Bolster 8” wide x 10” deep U-channel GR80 with two locking pins.
Rear Bolster 6-7/8” wide x 6-11/16” deep U-channel GR80 with two cantilever twist locks.
Landing Gear 62,500 lbs lift capacity with heavy-duty low profile sand shoe.
Rear Impact Guard 4” horizontal step U-channel designed and tested to conform to Federal Motor Vehicle Safety Standards in effect at time of production.
Suspension Hutchens slider slide mounting.
Wheel & Drums Heavy-duty, 16-1/2” x 7” outboard-mounted brake drums with 8.25” x 22.5” hub piloted disc wheels.
Tires 11R22.5
Axles 5” round type, 22,500 lbs rating, 77-1/2” track with 16-1/2” x 7” non-asbestos brake lining.
Brakes 4S/2M Wabco iABS system. Meets Federal Motor Vehicle Safety Standards No. 121.
Lights & Wiring 12V sealed system with molded connectors for sealed LED lamps.
Paint Hot-dipped galvanized.
Markings Customer markings installed. Conspicuity marking per latest Federal Safety Standards.

Difference Makers

Innovative features that elevate Hyundai Translead chassis

Explore why and how Hyundai Translead chassis are more durable and more sustainable.

Manufacturing & Materials

Hyundai Translead chassis are built in our state-of-the-art manufacturing facility with top-notch surface preparation, advanced corrosion protection, and highly automated running gear assembly.

Customizable Options

Our chassis can be made to multiple length configurations to meet your intermodal needs.

Durability

Structure and surfaces are hardened and protected against harsh elements and damage, including wear and tear from vehicles, docks, yards, and containers.

Longevity

Hyundai Translead builds chassis for longer service life, reducing total cost of ownership with longevity-focused features and warranty.

Chassis_Galvanize

Hot-Dipped Galvanization

Hyundai Translead offers hot-dipped galvanization of the complete chassis frame and components as an enhanced option to further protect against corrosion.

Chassis_CrossMembers

High-Strength Alloy Steel Construction

Hyundai Translead chassis are constructed with high-strength alloy steel for extra strength and durability.

Chassis_SealedWire

Sealed Wiring Harness with Integral Ground

Air and electrical lines are protected with automotive wire loom and strategic routing for optimal protection.
